รายละเอียดทางเทคนิค
| ActiveCount100 | ActiveCount100H | |
Specifications |
||
| Flow Rate | 100 liters/minute ± 4% | |
| Impactor head | 316L Stainless Steel 300 holes, 19 meters/second, autoclavable | |
| Dust cover | 316L Stainless Steel, autoclavable | |
| Removable baseplate | Magnetically attached removable, autoclavable | |
| Adjustable baseplate | Compatible with standard 90 mm petri dish (85mm-92mm), includes adjustment tool | |
| Sample volume presets | 8 programmable volume presets | |
| User names | 50 programmable user names (16 characters long) | |
| Location names | 400 programmable location names (16 characters long) | |
| Display | 3.5 inch (8.9 cm) color touch screen | |
| LED light | RGB LED light for status, alerts and alarms | |
| Speaker | Adjustable speaker volume | |
| Time/Date formats | Time format 12 or 24 hours, Date formats YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY | |
| USB port | USB 2.0 port (8 GB flash drive inclued) | |
| Data records | Unlimited; saved on USB flash drive in .csv file format | |
| Log file data fiels | Start date, time, location, user, sample duration, flow duration, volume, cycles, status | |
| Active flow control | Actively controled air flow at 100 liters per minute | |
| Handle - tripod mountable | Tripod mountable handle 3/8-16, includes 1/4-20 threaded adapter | |
| HEPA filterd exhaust | HEPA filtered exhaust captures 99.97% of particles as small as 0.3 µm | |
| Enclosure | 304 Stainless Steel | 316L Stainless Steel |
| Handle - tripod mountable | Tripod mountable handle 3/8-16, includes 1/4-20 threaded adapter | |
| Power | 24 VDC power adapter (100-240V ~ 1.5A 50-60Hz) | |
| Battery | AC/battery 8 hrs normal use | 24 VAC adapter or internal battery 10 hours normal use |
| Weight | 5.80 lbs (2.63 kg) | |
| Calibration | Annual | |
| Operating environment | 0-90% humidity non condensing, 0-40 °C sampling, 0-35 °C charging | |
| Dimensions | 7.6”(h) x 4.7“(w) x 4.7”(d) [ 19.4 (h) x 12.0 (w) x 12.0 (d) cm] | |
| Carry case | Pelican case with Lighthouse logo | |
Included |
||
| ActiveCount100, 304 stainless steel dust cover, 304 stainless steel sample head, petri dish adjust ment tool, 8 GB USB flash drive 1/4-20 tripod adapter, 24 volt power adapter, power chord, Opeating Manual on USB key, carry case | ActiveCount100H, 316L stainlees steel sample head, 316L stainless steel dust cover, removable baseplate, blower inlet seal, petri dish adjustment tool, USB 8 GB flash drive with cap, 1/4-20 threaded tripod adapter, 24 VDC power adapter with cord, operators manual on USB flash drive, calibration certificate, carry case. | |
Optional |
||
| Stainless steel impactor head, cleanroom tripod, compressed gas sampler attachement, remote sample head, petri dish labels, IQ/OQ protocols | Remote sampling adapter with iso probe, compressed gas sampler, tubing, cleanroom tripod, IQ/OQ protocols. | |
ต้องการใบเสนอราคา

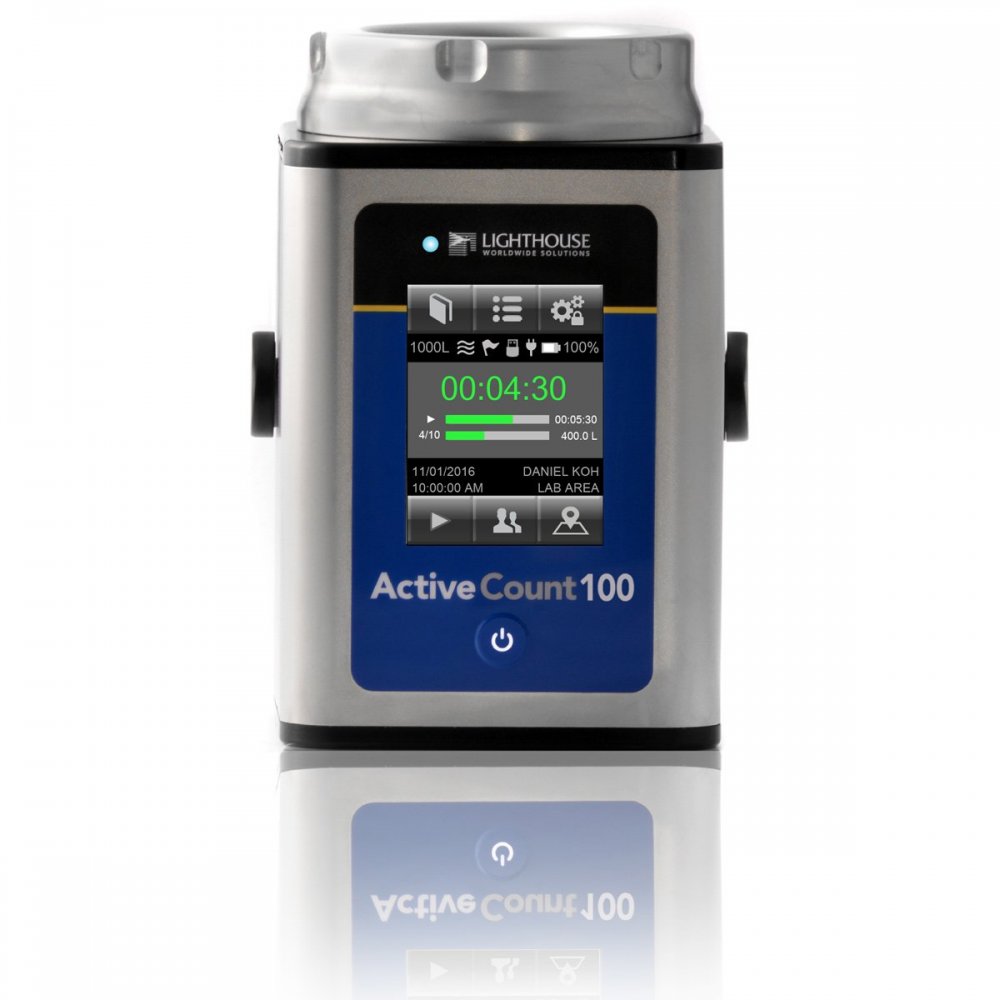

Meet the Next Generation of Viable Samplers
The ActiveCount100 Series
Lighthouse's ActiveCount100 is the next generation of viable sampler with a touch screen interface, USB key data download, gas sampling option and intuitive design the ActiveCount100 will be your next viable sampler.
การตั้งค่าผลิตภัณฑ์
กรองรุ่นและเลือกรุ่นที่ต้องการ
อัตราการไหล 2nd Part
ตัวกรองแบบHEPA
ActiveCount100
ActiveCount100 is a high performance portable microbial sampler suitable for use in cleanrooms and aseptic environments. Continuous...
ActiveCount100H
ActiveCount100H is a high performance portable active air sampler suitable for use in cleanrooms and asceptic environments. The...
อุปกรณ์เสริม
Gas Sampler
Works with the ActiveCount100 and ActiveCount100H
The Gas Sampler is a high performance portable gas sampling adapter for use with the ActiveCount100 and ActiveCount100H microbiological samplers.
The Gas Sampler is made from 316L Stainless Steel and is suitable for use in cleanrooms and aseptic environments. The Gas Sampler is designed to operate at a flow rate of 100 LPM (3.53 CFM) and can accommodate a pressure range of 20-145 psi. (1.4-10 bar).
The gas sampling adapter with fitted O-rings; inserts into the ActiveCount sample head providing a sealed connection and is designed to sample inert gasses only such as Argon (Ar), Nitrogen (N2), Clean Dry Air (CDA) and Carbon Dioxide (CO2).
The Gas Sampler can be used to test for microbial contamination in compressed air as per ISO 8573-7.
Remote Sampler
Works with the ActiveCount100H only
The Remote Adapter is a high performance portable remote sampling adapter for use with the ActiveCount100H microbiological sampler.
The Remote Adapter connects a sample tube of up to 10 feet to a stainless steel isokinetic probe mounted on a stainless steel monopod situated at your most critical monitoring location.
The 316L stainless steel remote sampling adapter with fitted O-rings, inserts into the ActiveCount sample head providing a sealed connection and is suitable for use in cleanrooms and aseptic environments.
