Ease of Use

LMS Pharma was designed with an ICON driven user interface which greatly simplifies the user experience.

Color coded status and unique shaped ICONS enhance the already intuitive user interface.

Ease of Use

Data at Your Fingertips

With LMS Pharma software, get data when, where and in the format you need it. Whether you are at your desk, or at any computer on your network, you can access all of the data you need.

View your data in multiple formats:
- Real Time Maps
- Real Time/Historical Graphs
- Real Time/Historical Data Tables
- Grid Tables
- Alarm Logs
- Event Logs
- Compliance Reports.
- Batch and Lot Reports

Data at Your Fingertips

System Redundancy

Environmental monitoring of critical operations is required by various GMP regulations and must occur before and during these operations without exception. With (optional) data collection redundancy your data will be automatically recorded to two databases simultaneously. With mirrored databases if the main computer fails, the secondary will automatically take over data collection, thus providing you with uninterrupted data collections and alarming.

System Redundancy

Compliance

21 CFR Part 11

With unique user ID, password protection, a secure database, auto logout, and password aging, LMS Pharma software was designed for 21 CFR Part 11 Compliance.

Compliance

Project Management

100% Turnkey Solutions

Lighthouse World Wide Solutions offers comprehensive Project Management services for our Monitoring Systems projects. Our Project Managers manage monitoring systems projects 100% of the time and we have been perfecting our project delivery for over 25 years. With dedicated Project Manager you can be sure your Monitoring Systems project will be delivered on time and within budget.

Project Management

Validation Services

In the pharmaceutical and biotechnology industries, validation refers to establishing documented evidence that a process or system, when operated within established parameters, can perform effectively and reproducibly to produce a medical product meeting its predetermined specifications and quality attributes. Lighthouse offers validation management and documentation for the particle counters and online monitoring systems we provide to our customers. We follow established cGAMP guidelines for system validation.

Validation Services

ACCESSORIES

Particle Counters Image

Particle Counters

Cleanroom/LAF/BSC

Delivering the utmost data integrity, risk mitigation and environmental compatibility, the APEX R5 Remote Particle Counter is unmatched in the industry. Designed with enhanced self-diagnostics for risk mitigation, the APEX R5 provides you with the utmost confidence in your data. With its minimum detection of 0.5 μm and a long life laser diode sensor, the APEX R5 provides unmatched performance, accuracy and reliability. The sloped front face and optional sealed connection provides you with compatibility for decontamination processes including VHP. The APEX R5 stands alone in the industry and is truly best in class.

Key Features:

  • 0.5 – 10 μm Particle Size Range
  • 1.0 CFM Flow Rate
  • 3,000 Records Data Storage
  • Self-Diagnostics
  • Web Browser
  • Smart Bracket
  • Validation Mode
  • Built in Alarm Light

Temp/Relative Humidity Sensors Image

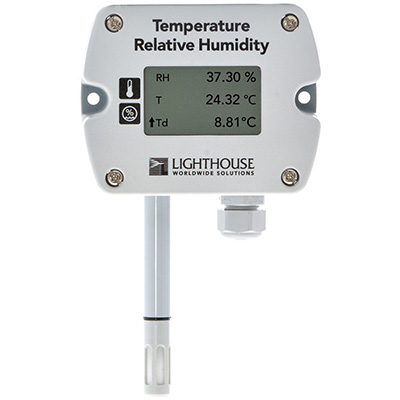

Temp/Relative Humidity Sensors

The Remote TRH-02-15 Sensor comes with ±0.2°C (0.36°F) and ±1.5% RH accuracy. The Remote sensor uses the latest sensor technology which offers long-term stability and resistance against pollutants.  With NIST Traceable multipoint calibration and  IP65/NEMA 4 rated enclosure.

The Remote TRH-02-15 Sensor is a cost effective, highly accurate, wall mounted sensor designed for cleanroom and controlled environment applications. The sensor has been designed for easy on-site installation.

Features:

  • Range 0-100% RH, -40 to +60°C
  • Accuracy ±0.2°C (0.36°F) and ±1.5% RH
    • (incl. hysteresis, non-linearity and repeatability)
  • Analog Output ( 4 - 20-mA)
  • Enhanced sensor protection
  • Simple on-site installation
  • Mounting Options: Wall mounted, Duct or Remote
  • Cleanroom wipe down
  • IP65 / NEMA 4 enclosure
  • Optional LCD display
  • 2 year warranty

Differential Pressure Sensors Image

Differential Pressure Sensors

The Remote DP Sensor has been designed for cleanroom operations with an IP67 rated housing and easy field service features. The Remote DP Sensor combines a flexible field selectable range, output and calibration options. A local display allows for cleanroom personnel to easily identify room specifications before entering sterile rooms.

The Remote DP Sensor has an accuracy of ±1.0% or can come with a more sensitive 0.5% accuracy over the full range. The sensor has been designed for easy on-site installation and comes in wall, cabinet and duct mounted versions with fixed or extended probes to enable installation in challenging situations. The Remote DP Sensor uses a stainless steel capacitive design with an advanced capacitive element that provides excellent reliability and stability with low measuring ranges available.

Features:

  • 4 to 8 selectable field ranges
    • +/-0.1" WC (+/-25 Pa)
    • +/-0.25" WC (+/-50 Pa)
    • +/-0.5" WC (+/-100 Pa)
    • +/- 1" WC (+/-250 Pa)
    • +/- 2.5" WC (+/-500 Pa)
    • +/- 5.0" WC (+/-1,000 Pa)
  • Accuracy: +/-1% or +/-0.5% full range
  • Stability (max.) 1.0% FS/YR or 2.0% FS.YR
  • Analog Output (4 - 20mA)
  • Enhanced sensor protection
  • Simple on-site installation
  • Wall, cabinet or duct mounted
  • Cleanroom wipe down
  • Local LCD display
  • IP67 enclosure
  • Wall or DIN Mounting
  • Push button for auto zero
  • 2 year warranty

Air Velocity Sensors Image

Air Velocity Sensors

The Remote AV Sensor is the ideal solution for unidirectional flow and ventilation monitoring in cleanroom environments and for HVAC applications.

The Remote AV Sensor has a highly accurate sensor for measurement of low air velocity and is most suitable for cleanroom and controlled environment device monitoring such as isolators, cabinets and biological safety cabinets. With its excellent high accuracy thin film sensor the Remote AV Sensor offers great accuracy at low velocities down to 0.15m/s (30ft/min).

With an LCD option with backlight the Remote AV Sensor allows for high visibility in process conditions, lower angular dependence allows for an easy and low risk installation.

Only one CAT 5/6 cable is required for power and communications.

Features:

  • Working range
    • 0…1 m/s (0…200ft/min)
    • 0…1.5 m/s (0…300ft/min)
    • 0…2 m/s (0…400ft/min)
    • 0…10 m/s (0…2000ft/min)
    • 0…20 m/s (0…4000ft/min)
  • Analog Output (4 - 20mA)
  • Smooth cover and cleanroom friendly enclosure
  • Long term sensor stability
  • Large easily readable display
  • Easy to install
  • Bayonet screws for easy access ¼ turn rotation
  • Protected PCB
  • IP65/NEMA4 rating
  • "Optional" local LCD display
  • Remote probe option with different cable lengths
  • Wall mounted or duct mounted options
  • 2 Year warranty

Temperature Sensors Image

Temperature Sensors

The Remote RTD is a small cost effective high accuracy temperature sensor suited for cleanroom applications and for monitoring laboratory equipment where product is stored. Ideal for incubator, oven, fridge and freezer applications in your facility or basic room monitoring and storage facility monitoring for product storage.

With an easy installation and IP65 rated cable outlet and IP65/NEMA 4 enclosure, the Remote RTD is most suitable for cleanroom applications when requiring high protection class. The easy install design enables secure mounting on vertical or horizontal surfaces. Only one CAT 5/6 cable is required for power and communications.

Features:

  • Range -30 to +105°C (-22° F to 221° F)
  • Accuracy ±0.3°C (0.54°F) at 20°C
    • (incl. hysteresis, non-linearity and repeatability)
  • Sensing element Pt 1000 (class A)
  • Analog Output ( 4 - 20-mA)
  • Remote probe option with different cable lengths (0.5, 2 and 3 meter lengths)
  • Long term sensor stability
  • Smooth cover and cleanroom friendly enclosure
  • Protected PCB
  • Simple on-site installation
  • Cleanroom wipe down
  • IP65 / NEMA 4 rating
  • 2 year warranty

Viable Sampling Image

Viable Sampling

Designed to meet the industry need for continious trouble free operation and flexible running parameters, the ActiveCountR is the right choice to meet your viable sampling needs.

The ActiveCountR can be operated either via local start/stop button or remotely via software interface.

Utalizing either a side mount or bottom mount 316L stainless steel impactor, the ActiveCountR offers superior sampling flexiability to meet all of your viable sampling needs.

The compact size provides true "plug and play" fuctionality in an easy to use package that quickly integrates into the LMS Pharma or PMS Express real time monitoring systems from Lighthouse.  Whether you are sampling within a cleanroom or inside of a Biosafety Cabinet or Laminr Flow Bench, the ActiveCountP will meet your cGMP compliant monitoring needs.

Features:

  • Designed for ISO 14698 Compliance
  • 1 CFM (28.3 LPM) sample rate
  • Utilizes an external vacuum system
  • Local start/stop control or remote control via software
  • Stainless steel enclosure
  • Single start/stop push button
  • Local LED status indicators
    • Power
    • Flow
    • Sampling
  • Third party validated sampling head
  • 2 Year warranty
