Experience unparalleled environmental monitoring in your cleanroom

With our cutting-edge software. Our system integrates advanced temperature, humidity, air velocity, and differential pressure sensors to provide real-time data on crucial environmental parameters. With our intuitive software, you can easily configure and monitor these sensors to ensure optimal conditions in your cleanroom at all times. Detect temperature and humidity fluctuations, measure air velocity, and monitor differential pressure to prevent contamination.

Our software puts you in control, empowering you to proactively manage your cleanroom environment and ensure compliance with industry regulations.

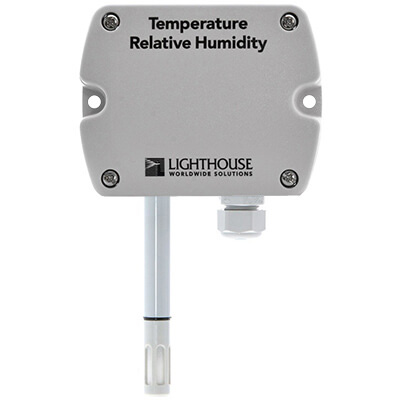

The Remote TRH-03-25 Sensor comes with ±0.3°C (0.54°F) and ±2.5% RH accuracy. The Remote sensor uses the latest sensor technology which offers long-term stability and resistance against pollutants. The enclosure is IP65/NEMA 4 rated and ideal for cleanroom applications. The sensor has been designed for easy on-site installation and comes in wall or duct mounted versions with fixed or extended probes to enable installation in challenging situations.

Key Features:

  • Range 0-100% RH, -40 to +60°C
  • Accuracy ±2.5% RH and ±0.3°C (0.54°F)
  • Analog Output (4-20mA)
  • Enhanced Sensor Protection
  • Simple On-site installation
  • Wall or Duct Mounted
  • Cleanroom Wipe Down
  • IP65/NEMA Enclosure
  • 2 Year Warranty

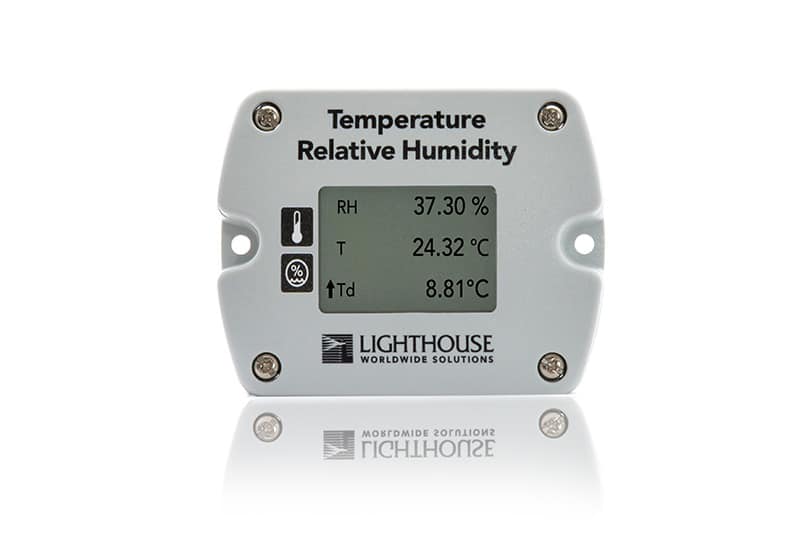

The TRH-02-15 is available with a display option with ±0.2°C (0.36°F) and ±1.5% RH accuracy. The Remote sensor uses the latest sensor technology which offers long-term stability and resistance against pollutants. The enclosure is IP65/NEMA 4 rated and ideal for cleanroom applications. The sensor has been designed for easy on-site installation and comes in wall or duct mounted versions with fixed or extended probes to enable installation in challenging situations.

Key Features:

  • Range 0-100% RH, -40 to +60°C
  • Accuracy ±1.5% RH and ±0.2°C
  • Analog Output (4-20mA)
  • Enhanced Sensor Protection
  • Simple On-site installation
  • Wall or Duct Mounted
  • Cleanroom Wipe Down
  • IP65/NEMA Enclosure
  • 2 Year Warranty
  • Optional LCD Display

The Remote RTD is a small cost-effective high accuracy temperature sensor suited for cleanroom applications and for monitoring laboratory equipment where product is stored. This sensor is ideal for incubator, oven, fridge, and freezer applications in your facility or basic room monitoring

Key Features:

  • Range -30 to +105°C (-22° F to 221° F
  • Accuracy ±0.3°C (0.54°F) at 20°
  • (incl. hysteresis, non-linearity and repeatability
  • Sensing element Pt 1000 (class A
  • Analog Output ( 4 – 20-m
  • Remote probe option with different cable length
  • (0.5, 2 and 3 meter lengths
  • Long term sensor stability
  • Smooth cover and cleanroom friendly enclosure
  • Protected PCB
  • Simple on-site installation
  • Cleanroom wipe down
  • IP65 / NEMA 4 rating
  • 2 year warranty

The Remote DP Sensor has been designed for cleanroom operations with an IP64/NEMA4 rated housing and easy field service features. The Remote DP Sensor combines a flexible field selectable range, output and calibration options.

Key Features:

  • 4 to 8 selectable field ranges
    • +/-0.1″ WC (+/-25 Pa)
    • +/-0.2″ WC (+/-50 Pa)
    • +/-0.4″ WC (+/-100 Pa)
  • Accuracy:+/-0.5% full range
  • Stability (max.) 1.0% FS/YR or 2.0% FS.YR
  • Analog Output (4 – 20mA)
  • Enhanced sensor protection
  • Simple on-site installation
  • Wall, cabinet or duct mounted
  • Cleanroom wipe down
  • IP67 enclosure
  • Wall or DIN Mounting
  • 2 year warranty

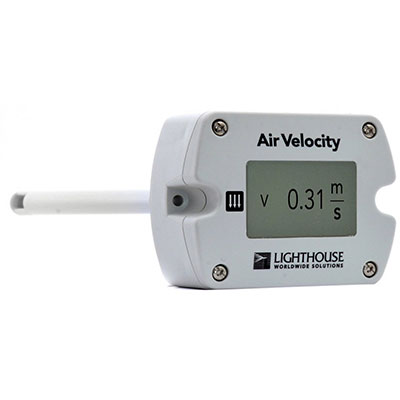

The Remote AV Sensor is the ideal solution for unidirectional flow and ventilation monitoring in cleanroom environments and for HVAC applications.

The Remote AV Sensor has a highly accurate sensor for measurement of low air velocity and is most suitable for cleanroom and controlled environment device monitoring such as isolators, cabinets and biological safety cabinets. With its excellent high accuracy thin film sensor the Remote AV Sensor offers great accuracy at low velocities down to 0.15m/s (30ft/min).

Key Features:

  • Working range
    – 0…1 m/s (0…200ft/min)
    – 0…1.5 m/s (0…300ft/min)
    – 0…2 m/s (0…400ft/min)
  • Analog Output (4 – 20mA)
  • Smooth cover and cleanroom friendly enclosure
  • Long term sensor stability
  • Large easily readable display
  • Easy to install
  • Bayonet screws for easy access ¼ turn rotation
  • Protected PCB
  • IP65/NEMA4 rating
  • “Optional” local LCD display
  • Remote probe option with different cable lengths
  • Wall mounted or duct mounted options
  • 2 Year warranty
TRH 03-25
TRH 02-15
Remote Temperature Sensor
Remote Differential Pressure Sensor
Remote Air Velocity Sensor

Instrument Files

Title
Download
Datasheet – Temp/Humidity Sensor Remote TRH-03-25, TRH-02-15
Download
Datasheet – Temperature Sensor Remote RTD
Download
Wiring Diagram – RTD
Download
Wiring Diagram – Air Velocity
Download
Datasheet – Air Velocity Remote
Download
Datasheet – Differential Pressure
Download
Wiring Diagram – Differential Pressure
Download
Wiring Diagram – Temperature Relative Humidity
Download
