TECHNICAL DETAILS

  LS-20 LS-60

Specifications

Size Range  1.0 - 50.0 μm 0.1 - 0.5 μm;
0.2 - 2.0 μm;
0.3 - 3.0 μm;
0.5 - 100 μm
Channel Thresholds  1.0, 2.0, 3.0, 5.0, 10.0, 15.0, 25.0, 50.0μm 0.1, 0.15, 0.2, 0.25, 0.3, 0.35, 0.4, 0.5μm;
0.2, 0.3, 0.4, 0.5, 0.7, 1.0, 1.3, 2.0μm;
0.3, 0.5, 0.7, 1.0, 1.3, 2.0, 2.5, 3.0μm;
0.5, 1.0, 2.0, 5.0, 10.0, 25.0, 50.0, 100.0μm
Number of Channels 8
Flow Rate  20 mL per minute  60 mL per minute
Light Source  Laser Diode
Calibration  NIST Traceable
Syringe Sizes  10mL, 25mL
Maximum Sample  1 liter
Communication Modes  RS-232  RS-485 MODBUS
Wetted Components  Tefl on (PFA), Quartz, Kalrez, Kel F, Polypropylene
Stirrer  Magnetic, Adjustable Speed
Connectors  RJ45
Supporting Software  LS-20 Software  LS-60 Software
Enclosure  Stainless Steel
Power  100-240VAC, 24 VDC to LS20  24 VDC
Dimensions  12.875”(l) x 8.75”(w) x 14.75”(h) [ 32.7 x 22.2 x 37.5cm]
Weight  20.5 lbs (9.3kg)

Environmental Conditions

Operating 50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing
Storage 14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing

Accessories

Included Operating Manual on CD; LS-20/60 Software; Power Supply; Flow Cell Cleaning Solution and Brush;
Cable; RJ-45 to DB9 Adapter; Sample Tubing; Nut and Ferrule Kit; 500mL Beaker; Magnetic Stir Bar.
Optional Printed Operating Manual; 10mL Syringe; 5-piece Beaker Set (50, 100, 250, 600, 1000mL Beakers); Carrying Case with Wheels; Certificate of Origin.

GET A QUOTE

First Name (*)
Last Name (*)
Company Name (*)
Email (*)
Phone (*)
Address (*)
Message (*)
Security Code
Security Code ImageRefresh Button
(*)
(*) Required Fields

Liquid Batch Samplers

Reliable, Accurate, Industry Compliant

Lighthouse’s Liquid Batch Samplers are designed to be user-friendly and intuitive for utilization. Most importantly, it is designed to be compliant to industry standards. For regulated applications to parts cleaning applications, Lighthouse’s Batch Samplers will be the ideal choice for your liquid particle monitoring needs.

Liquid Batch Samplers Image

PRODUCT CONFIGURATOR

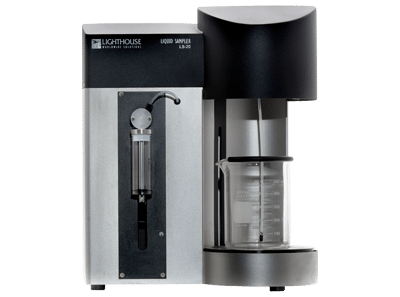

Batch Sampler LS-20 Image
