TECHNICAL DETAILS

  1100 LD 3100 5100 3200 5200 3350 5350 Boulder Counter

Specifications

Size Range 0.1 - 1.0 μm
Optional ranges up to 5.0 µm
0.3 - 25.0μm 0.5 - 25.0μm 0.3 - 25.0 um 0.5 - 25.0 um 0.3 - 25.0 µm 0.5 - 25.0 um 5.0 - 100.0 um
Channel Sizes Standard: 0.10, 0.15, 0.2, 0.25, 0.3, 0.5, 0.7, 1.0μm Standard: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm
Standard: 0.3, 0.5, 1.0, 5.0, 10.0, 25.0 µm
8-Channel: 0.3, 0.5, 0.7, 1.0, 3.0, 5.0,7.0,10.0 µm
Standard: 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 µm
Standard: 0.5, 1.0, 3.0, 5.0, 10.0, 25.0 µm
8-Channel: 0.5, 0.7, 1.0, 2.0, 3.0, 5.0, 7.0,10.0 µm
Standard: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm
Standard: 0.3, 0.5, 1.0, 5.0, 10.0, 25.0 µm
8-Channel: 0.3, 0.5, 0.7, 1.0, 3.0, 5.0, 7.0, 10.0 µm
8-Channel Optional: 0.3, 0.5, 0.7, 1.0, 5.0, 7.0, 10.0, 25.0 µm
Standard: 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 µm
Standard: 0.5, 1.0, 3.0, 5.0, 10.0, 25.0 µm
8-Channel: 0.5, 0.7, 1.0, 2.0, 3.0, 5.0, 7.0, 10.0 µm
8-Channel Optional: 0.5, 1.0, 2.0, 3.0, 5.0, 7.0, 10.0, 25.0 µm
Standard: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm
Optional: 0.3, 0.5, 1.0, 5.0, 10.0, 25.0 µm
Standard: 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 µm
Optional: 0.5, 1.0, 3.0, 5.0, 10.0, 25.0 µm
Standard: 5.0, 10.0, 25.0, 40.0, 50.0,100.0µm
Flow Rate 1.0 CFM (28.3 LPM) 50 LPM 100 LPM 28.3 LPM
Counting Efficiency 50% @ 0.1μm; 100% @ sizes > 0.15μm Per JIS B 9921 and ISO 21501-4 50% @ 0.3 µm; 100% @ sizes
> 0.45 µm
50% @ 0.5 um; 100% @ sizes
> 0.75 µm
50% @ 0.3 µm; 100% @ sizes > 0.45 µm 50% @ 0.5 um; 100% @ sizes > 0.75 µm 50% @ 0.3 µm; 100% @ sizes > 0.45 µm 50% @ 0.5 µm; 100% @ sizes > 0.75 µm 50% @ 5.0 um
Concentration Limits 500,000 Particles / ft3 (17,150,000 / m3) @ 5% Coincidence Loss 1,000,000 particles/ft3
(35,300,000/m3) @ 10% coincidence loss
Suitable for ISO classes 1-8 cleanrooms
700,000 particles/ft3 (24,710,000/m3) @ 10% coincidence loss
Suitable for ISO classes 1-8 cleanrooms
400,000 particles/ft3 (14,120,000/m3)
@ 10% coincidence loss
Suitable for ISO classes 1-8 cleanrooms
500,000 particles/ft3 @ 5% coincidence loss
Light Source Long Life Laser Diode Extreme Life Laser Diode Technology with >20-year Mean Time To Failure (MTTF)
Dimensions 14.65"Lx8.0"Wx10.4"H (37x20x26cm) 9.5"Lx8.0"Wx10.2"H (24.13x20.32x25.9cm) 14.65"Lx8.0"Wx10.4"H (37x20x26cm) 9.5"Lx8.0"Wx10.2"H (24.13x20.32x25.9cm)
Weight With battery: 23.55 lbs (10.68 kg)
Without battery: 20.45 lbs (9.28 kg)
With battery: 13.40 lbs (6.08 kg)
Without battery: 12.00 lbs (5.44 kg)
With battery: 20.90 lbs (9.48 kg)
Without battery: 17.80 lbs (8.07 kg)
With battery: 26.15 lbs (11.86 kg)
Without battery: 23.05 lbs (10.46 kg)
With battery: 13.40 lbs (6.08 kg)
Without battery: 12.00 lbs (5.44 kg)
Zero Count Level < 1 count / 5 minutes (per JIS B 9921)
Calibration Meets ISO 21501-4 Calibration using NIST Traceable PSL Spheres, DMA and Condensation Particle Counter
Count Modes Automatic, Manual, Beep, Concentration, Cumulative/Differential, Real Time (with LMSNet or LMS Express RT software)
Data Storage 3,000 Sample Records, Rotating Buffer (particle and environmental data with location and time)
Communication Modes USB, Ethernet, RS-485 and Secure Data Transfer (LSDT) to and Storage on USB Flash Drive
Supporting Software LMS Express and Express RT; LMS Pharma
Environmental Sensors Optional (up to 4) temperature/relative humidity, air velocity, differential pressure or others
Touch Screen Display 5.7-inch (14.47 cm) Color TFT Touch Screen Display
Reports Pass/Fail Report Wizard for ISO-14644-1, EU GMP Annex 1 and FS-209 Report Formats
Alarms Integrated alarm buzzer and external alarm connector. Alarms on counts, low battery, sensor failure
Sample Output Internally Filtered to 100% @ 0.1μm, Optional HEPA Filtration for Cooling System Exhaust Internally filtered to HEPA standards (>99.97% @ 0.3μm)
Vacuum Source Internal closed-loop controlled pump. Allows the use of 3/8" ID sample tubing of up to 12 meters (40 feet) @ 50 & 100LPM
Enclosure Stainless Steel
Power 100-240 VAC, 50-60 Hz, External AC/DC Adapter
Battery Optional: Li-Ion, Removable & Rechargeable (typical recharge time 7.5 hours)
Languages English (U.S.), French, German, Italian, Spanish, Chinese, Russian, Japanese, Korean

Environmental Conditions

Operating 50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing
Storage 14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing

Accessories

Included Operating Manual on CD; Isokinetic Sample Probe with Tripod and Tubing; Purge Filter; Power Cable and Spare Fuse; LMS XChange and Express Software; Printer; Printer Paper
Optional Printed Operating Manual; Network Adapter; Wireless Network Adapter; Internal Removeable, Rechargeable Battery; Carrying Case with Wheels; Cleanroom Cart; Temperature/Relative Humidity Probe; Air Velocity Probe; Differential Pressure Probe; Filter Scanning Probe; High Pressure Difuser; 32-Port Universal Manifold; LMS Express RT Software; LMSNet Software; Validation Documentation Wireless Network Adapter; Removable Rechargeable Li-Ion Battery; Carrying Case with Wheels; Temperature/Relative Humidity Probe; Differential Pressure Probe; Intelligent Filter Scanning Probe; Air Velocity Probe; Spare Removable
Rechargeable Li-Ion Battery; External Battery Charger; LMS Express, RT Software; LMS Pharma Edition Software; LMS Standard Software; Validation Documentation; Printed Operating Manual; Cleanroom Cart

GET A QUOTE

First Name (*)
Last Name (*)
Company Name (*)
Email (*)
Phone (*)
Address (*)
Message (*)
Security Code
Security Code ImageRefresh Button
(*)
(*) Required Fields

Unmatched Versatility

Your Solair Particle Counter Can Do It All

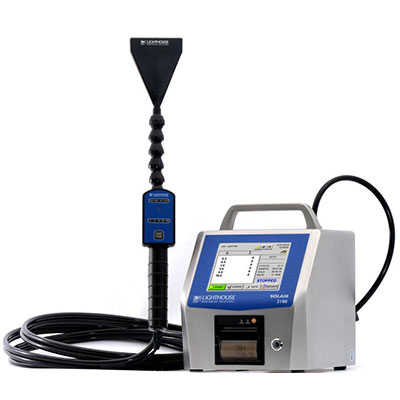

Besides being the best portable in the market, the Solair can be connected to a manifold and used in a real time monitoring system. Add a Scan Air Pro filter scanning probe and do filter integrity testing. High pressure gas adapters allow you to do particle testing in ultra-pure gasses. Integrate environmental sensors and you have the world's most versatile portable particle counter.
