TECHNICAL DETAILS
ApexR3 | ApexR5 | ApexR02 | ApexR03 | ApexR05 | |
Specifications |
|||||
Minimum Size Detection | 0.3 μm | 0.5 μm | 0.2 μm | 0.3 µm | 0.5 µm |
Standard 2 channel sizes | 0.3, 0.5, μm | 0.5, 5.0 μm | 0.2, 0.3 µm | 0.3, 0.5 µm | 0.5, 5.0 µm |
Optional 4 channel sizes | 0.3, 0.5, 1.0, 5.0 μm | 0.5, 1.0, 5.0, 10.0 μm | 0.2, 0.3, 0.5, 1.0 µm | 0.3, 0.5, 1.0, 5.0 µm | 0.5, 1.0, 5.0, 10.0 µm |
Additional Available sizes | 0.3, 0.5, 0.7, 1.0, 3.0, 5.0 μm | 0.5, 0.7, 1.0, 3.0, 5.0, 7.0, 10.0 μm | 0.2, 0.3, 0.5, 0.7, 1.0, 2.0 µm | 0.3, 0.5, 0.7, 1.0, 3.0, 5.0 µm | 0.5, 0.7, 1.0, 3.0, 5.0, 7.0,10.0µm |
Flow Rate / Nozzle Size | 1 CFM (28.3 LPM), 1/4” inlet and outlet fitting | 0.1 CFM (2.83 LPM), 1/8” inlet and outlet fitting | |||
Weight | 1.6 lbs (0.73 kg) | 1.4 lbs (0.63 kg) | |||
Communication | Ethernet or Serial | ||||
Modbus Protocol | TCP or RTU or ASCII | ||||
Data Storage Records | 3.000 | ||||
Self Diagnostics | Laser power supply, laser current, laser power, photo detector power supply, backround voltage, photo detector health. | ||||
Web Server | Remote access via web browser | ||||
Validation Mode | Yes | ||||
Alarm Light | Yes | ||||
Enclosure | 304 Stainless Steel | ||||
Power | 24 VDC, PoE | ||||
External Vacuum Requirements | Nominal 1.0 CFM 18" (45.72 cm) of Hg | ||||
Light Source | Laser Diode | ||||
Calibration | Designed for ISO 21501-4 Compliance | ||||
Zero Count Level | <1count/5 minutes per ISO 21501-4 | ||||
Concentration Limits 1.0 CFM | 1,000,000 particles/ft3@10% (34,300,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms | ||||
Concentration Limits 0.1 CFM | 4,000,000 particles/ft3@10% (137,200,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms | ||||
Counting Efficiency | 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size | ||||
Dimensions | 6.38”x 2.93“x 4.63”(16.2x7.4x11.7cm) | ||||
Options |
|||||
Software | LMS Express, LMS Express RT, LMS Pharma | ||||
Display | OLED | ||||
Smart Bracket | Wall Mount Flush, Wall Mount Through Base, Wall Mount Through Wall |
GET A QUOTE
Best in Class
Data Integrity, Data Availability, Environmental Compatibility

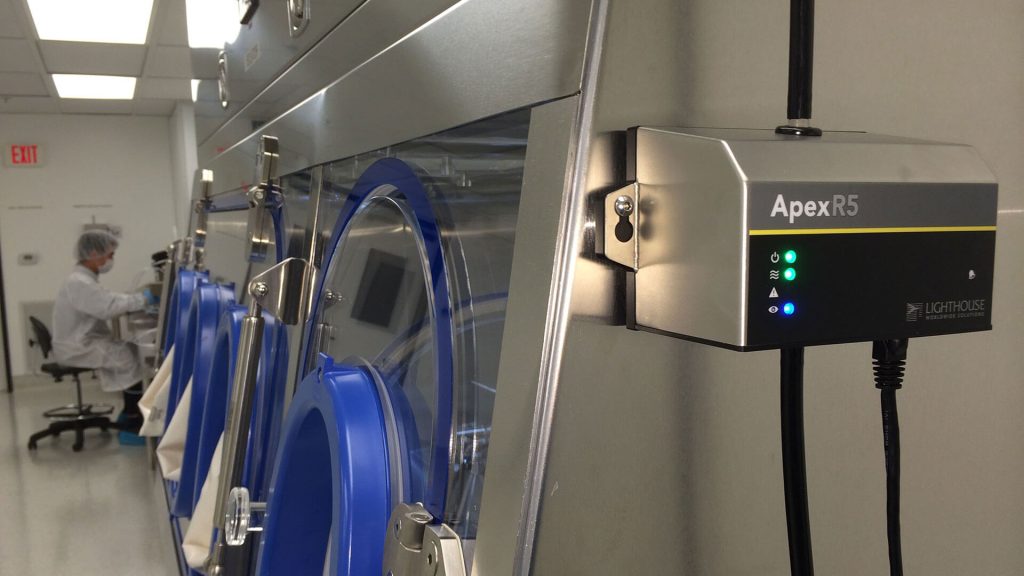

If the integrity of your data is mission critical as it is in GMP regulated industries, if risk mitigation of data errors and sensor failures matters to you, if you need to wipe down your sensors frequently or you use VHP for room sterilization, the ApexR will delight you and become the solid foundation you need in a solid Environmental Monitoring Program.

PRODUCT CONFIGURATOR
Filter Models and Find Your Model Number
Flow Rate 2nd Part
Minimum Channel Size

ApexR3
Delivering the utmost data integrity, risk mitigation and environmental compatibility, the ApexR3 Remote Particle Counter is unmatched in...

ApexR5
Delivering the utmost data integrity, risk mitigation and environmental compatibility, the ApexR5 Remote Particle Counter is unmatched in...

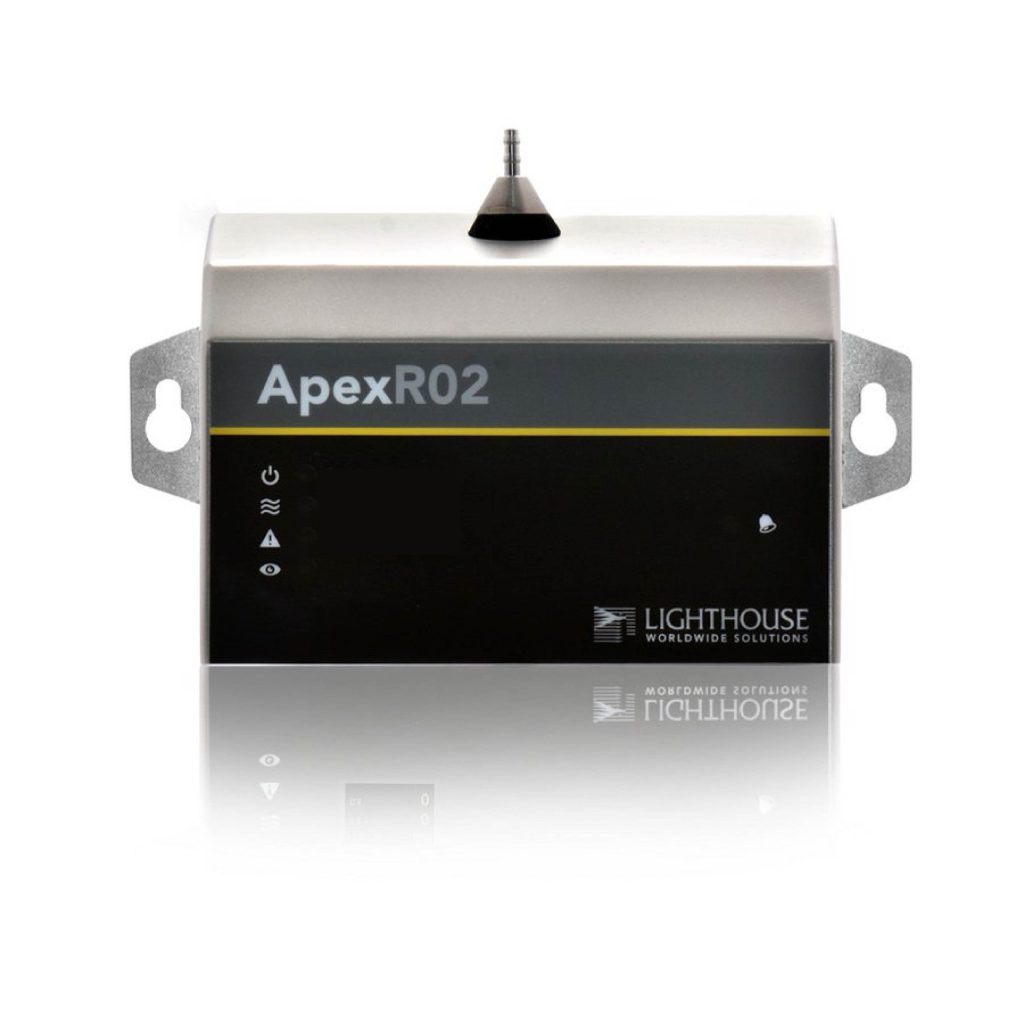

ApexR02
Delivering the utmost data integrity, risk mitigation and environmental compatibility, the ApexR02 Remote Particle Counter is unmatched in...
