技术细节

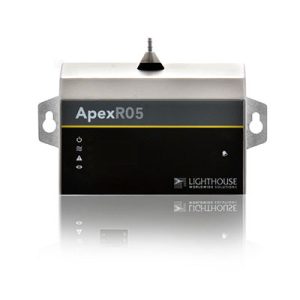

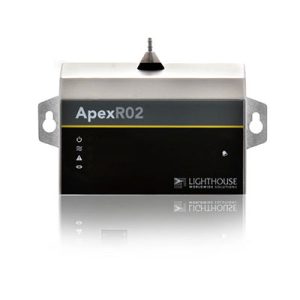

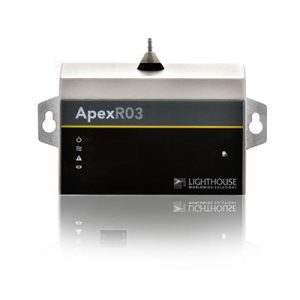

| ApexR3 | ApexR5 | ApexR02 | ApexR03 | ApexR05 | |
Specifications |
|||||
| Minimum Size Detection | 0.3 μm | 0.5 μm | 0.2 μm | 0.3 µm | 0.5 µm |
| Standard 2 channel sizes | 0.3, 0.5, μm | 0.5, 5.0 μm | 0.2, 0.3 µm | 0.3, 0.5 µm | 0.5, 5.0 µm |
| Optional 4 channel sizes | 0.3, 0.5, 1.0, 5.0 μm | 0.5, 1.0, 5.0, 10.0 μm | 0.2, 0.3, 0.5, 1.0 µm | 0.3, 0.5, 1.0, 5.0 µm | 0.5, 1.0, 5.0, 10.0 µm |
| Additional Available sizes | 0.3, 0.5, 0.7, 1.0, 3.0, 5.0 μm | 0.5, 0.7, 1.0, 3.0, 5.0, 7.0, 10.0 μm | 0.2, 0.3, 0.5, 0.7, 1.0, 2.0 µm | 0.3, 0.5, 0.7, 1.0, 3.0, 5.0 µm | 0.5, 0.7, 1.0, 3.0, 5.0, 7.0,10.0µm |
| Flow Rate | 1 CFM (28.3 LPM) | 0.1 CFM (2.83 LPM) | |||
| Weight | 1.6 lbs (0.73 kg) | 1.4 lbs (0.63 kg) | |||
| Communication | Ethernet or Serial | ||||
| Modbus Protocol | TCP or RTU or ASCII | ||||
| Data Storage Records | 3.000 | ||||
| Self Diagnostics | Yes | ||||
| Web Browser | Yes | ||||
| Validation Mode | Yes | ||||
| Alarm Light | Yes | ||||
| Enclosure | 304 Stainless Steel | ||||
| Power | 24 VDC, PoE | ||||
| External Vacuum Requirements | Nominal 1.0 CFM 18" (45.72 cm) of Hg | ||||
| Light Source | Laser Diode | ||||
| Calibration | Designed for ISO 21501-4 Compliance | ||||
| Zero Count Level | <1count/5 minutes per ISO 21501-4 | ||||
| Concentration Limits | 500,000 particles/ft3 (17,150,000/m3) @ 5% coincidence loss suitable for ISO classes 1-8 cleanrooms | ||||
| Counting Efficiency | 50% @ minimum channel size, 100% for particles >1.5X - 2X channel 1 particle size | ||||
| Dimensions | 6.38”x 2.93“x 4.63”(16.2x7.4x11.7cm) | ||||
Options |
|||||
| Software | LMS Express, LMS Express RT, LMS Pharma | ||||
| Display | OLED | ||||
| Smart Bracket | Wall Mount Flush, Wall Mount Through Base, Wall Mount Through Wall | ||||
询价
在线式空气粒子传感器，0.5um感应度，1.0CFM流量，Modbus485 / POE通讯
Delivering the utmost data integrity, risk mitigation and environmental compatibility, the ApexR5 Remote Particle Counter is unmatched in the industry. Designed with enhanced self-diagnostics for risk mitigation, the ApexR5 provides you with the utmost confidence in your data. With its minimum detection of 0.5 μm and a long-life laser diode sensor, the ApexR5 provides unmatched performance, accuracy, and reliability. The sloped front face and optional sealed connection provide you with compatibility for decontamination processes including VHP. The ApexR5 stands alone in the industry and is truly the best in class.
Key Features:
- 0.5 – 10 μm Particle Size Range
- 1.0 CFM Flow Rate
- 3,000 Records Data Storage
- Self-Diagnostics
- Web Browser
- Smart Bracket
- Validation Mode
- Built in Alarm Light
| Type | Part # | Title | Paper Size | File Size | 下载 |
|---|---|---|---|---|---|
| Datasheet | 190723 | ApexR02, ApexR03, ApexR05, ApexR3, ApexR5 | Letter | 12.8 MB | DOWNLOAD |
| Operating Manual | 248083447-1 R1 | Apex R02, R03, R05, R3, R5 | Letter | 9.1 MB | DOWNLOAD |
