技术细节

  Z3 Z50

Specifications

Size Range 0.3 - 10.0 μm 0.5 - 10.0 μm
Standard 6 Channels 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm
Flow rate 1.0 CFM (28.3 LPM) 100 LPM
Laser Source Extreme Life Laser Diode 15 year MTTF
Zero Count Level < 1 count / 5 minutes (per ISO 21501-4)
Concentration Limits 1,000,000 particles / ft3 @ 10% coincidence loss suitable for ISO classes 1-8 cleanrooms
Counting Efficiency 50% @ 0.3 μm; 100% for particles > 1.5 X second channel particle size
Calibration Designed for ISO 21501-4 Compliance
Self-Diagnostics Laser Power/Current/Supply, Flow out-of-range, No flow, PA Background/Supply/Health
Count Modes Sample, Concentration, Beep, Custom Recipies and Certification modes
Data Storage 10,000 sample records, 1,000 locations, 50 recipes, 50 report sessions
Communication SmartPort, RS-485, Ethernet, USB standard, USB micro, Wi-Fi (802.11 a/b/g/n), Bluetooth
Supporting Software LMS Express, LMS Express RT, LMS Pharma, LMS Pro
Environmental Sensors Temperature/relative humidity probe: 32-122 F(0-50C)+/-1F(0.5C),15-90%+/-2%RH
Touch Screen Display 7.0 inch (8.89 cm), 1200 x 800 IPS color touch screen
Speakers 2x adjustable up to 70 dB to indicate status and alerts
Carry Handle With RGB light pipe for status and alarms
Printer Embedded panel-mount printer
Reports FS 209E, ISO 14644-1:1999, ISO 14644-1:2015, & EU GMP regulatory pass/fail reports on screen or printer
Alert User configurable warnings and alarms
Sample Inlet 3/8 inch Inlet nozzle 1/2 inch Inlet nozzle
Sample Output Internally filtered to HEPA standards (>99.97% @ 0.3 μm); with rotatable exhaust fitting for directed flow
Vacuum Source Internal blower, automatic flow control
Enclosure Chemically Resistant Polycarbonate blend, conductive lining, VHP compatible
Power External power supply: 24 VDC, 5 A max draw
Battery 2x Li-Ion*, removable and rechargeable, 11 hours nominal use, 50% duty cycle no printing 2x Li-Ion*, removable and rechargeable, 8 hours nominal use, 50% duty cycle no printing
Dimensions 12.76“ (l) x 6.23” (w) x 8.88” (h), [32.41(l) x 15.82(w) x 22.55(h) cm]
Temperature Range 50°F to 104°F (10°C to 40°C), 20% to 95% relative humidity, non-condensing
Weight 7.05 lbs (3.19 kg) without batteries, battery weight 1.35 lbs (0.61 kg)
Languages English (U.S.)

Included

  USB cable A to B, USB flash drive 512 MB with lanyard, tripod mini 7” telescoping, ISO probe 1 CFM, ISP clamp, tubing 3/8“ ID x 1/2” OD BevXX 10 feet, Zero count filter, 24 VDC 5.0 amp power adapter and power cord, *1 Li-Ion Smart battery included (2 battery slot capacity), Calibration certificate USB cable A to B, USB flash drive 512 MB with lanyard, tripod mini 7” telescoping, ISO probe 1 CFM, ISP clamp, tubing 1/2“ ID x 5/8” OD BevXX 10 feet, Zero count filter, 24 VDC 5.0 amp power adapter and power cord, *1 Li-Ion Smart battery included (2 battery slot capacity), Calibration certificate

Optional

  Temperature & humidity probe, Isokinetic sample probe with 6ft tubing, additional Li-Ion batteries, External battery charger w/AC & car adapter external thermal printer and cable, Printed Operating Manual, Carry case

询价

姓氏 (*)
名字 (*)
公司名称 (*)
电邮 (*)
电话 (*)
地址 (*)
国家 (*)
主要行业 (*)
信息 (*)
(*) 必填项目
ApexZ50
ApexZ50ApexZ50

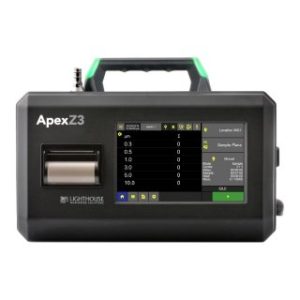

When you are looking to take your environmental monitoring program to the next level, the ApexZ is your solution. The power of the ApexZ starts with a complete system of self-diagnostics and is topped off with the most flexible data management system in the industry, all packaged in the lightest and smallest portable air particle counter on the market. The ApexZ is the most innovative particle counter available and will be a timeless addition to any contamination control strategy.

For example, Data can be collected from the onboard printer, transferred wirelessly directly to your servers, or be integrated
directly into your laboratory information management system, future-proofing your contamination control strategy.

All of these features and more are sealed in an easy to wipe down chemically compatible enclosure.

Key Features:

  • 0.5 - 10.0μ Particle Size Channels
  • 100 LPM Flow Rate
  • Bi-Directional Integration into LIMS EM Systems
  • Sealed Chemically Compatible Enclosure
  • Advanced Self-Diagnostics
  • Integrated Status Lights
  • Hot-Swappable Smart Batteries
  • Wi-Fi, Ethernet and USB Data Transfer Options
  • 21 CFR Part 11 Compliant
  • Customizable Data Reports
  • Built-In Cleanroom Certification Reports
  • 2 Year Warranty

* Patent Pending
