技术细节
| Z3 | Z50 | |
Specifications |
||
| Size Range | 0.3 - 10.0 μm | 0.5 - 10.0 μm |
| Standard 6 Channels | 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm | 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm |
| Flow rate | 1.0 CFM (28.3 LPM) | 100 LPM |
| Laser Source | Extreme Life Laser Diode 15 year MTTF | |
| Zero Count Level | < 1 count / 5 minutes (per ISO 21501-4) | |
| Concentration Limits | 1,000,000 particles / ft3 @ 10% coincidence loss suitable for ISO classes 1-8 cleanrooms | |
| Counting Efficiency | 50% @ 0.3 μm; 100% for particles > 1.5 X second channel particle size | |
| Calibration | Designed for ISO 21501-4 Compliance | |
| Self-Diagnostics | Laser Power/Current/Supply, Flow out-of-range, No flow, PA Background/Supply/Health | |
| Count Modes | Sample, Concentration, Beep, Custom Recipies and Certification modes | |
| Data Storage | 10,000 sample records, 1,000 locations, 50 recipes, 50 report sessions | |
| Communication | SmartPort, RS-485, Ethernet, USB standard, USB micro, Wi-Fi (802.11 a/b/g/n), Bluetooth | |
| Supporting Software | LMS Express, LMS Express RT, LMS Pharma, LMS Pro | |
| Environmental Sensors | Temperature/relative humidity probe: 32-122 F(0-50C)+/-1F(0.5C),15-90%+/-2%RH | |
| Touch Screen Display | 7.0 inch (8.89 cm), 1200 x 800 IPS color touch screen | |
| Speakers | 2x adjustable up to 70 dB to indicate status and alerts | |

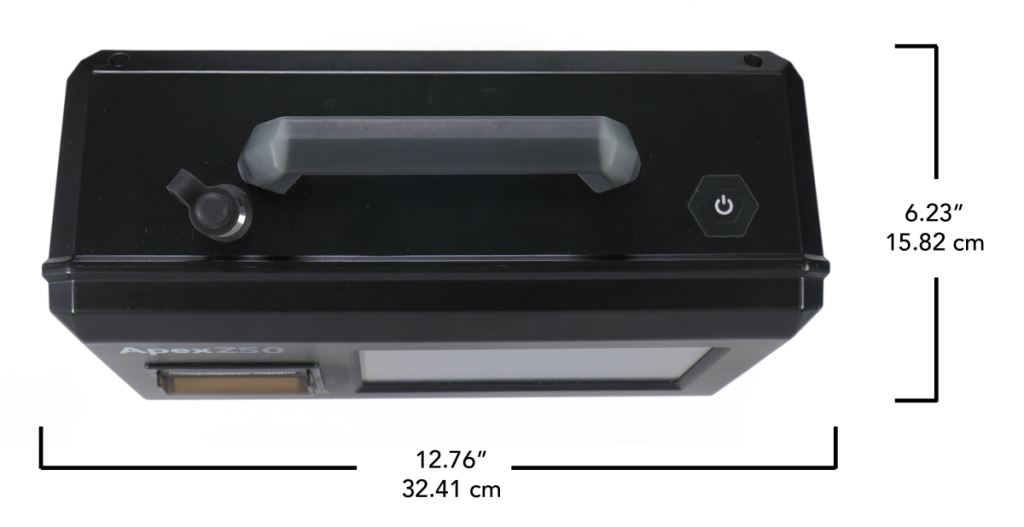

| Carry Handle | With RGB light pipe for status and alarms | |
| Printer | Embedded panel-mount printer | |
| Reports | FS 209E, ISO 14644-1:1999, ISO 14644-1:2015, & EU GMP regulatory pass/fail reports on screen or printer | |
| Alert | User configurable warnings and alarms | |
| Sample Inlet | 3/8 inch Inlet nozzle | 1/2 inch Inlet nozzle |
| Sample Output | Internally filtered to HEPA standards (>99.97% @ 0.3 μm); with rotatable exhaust fitting for directed flow | |
| Vacuum Source | Internal blower, automatic flow control | |
| Enclosure | Chemically Resistant Polycarbonate blend, conductive lining, VHP compatible | |
| Power | External power supply: 24 VDC, 5 A max draw | |
| Battery | 2x Li-Ion*, removable and rechargeable, 11 hours nominal use, 50% duty cycle no printing | 2x Li-Ion*, removable and rechargeable, 8 hours nominal use, 50% duty cycle no printing |
| Dimensions | 12.76“ (l) x 6.23” (w) x 8.88” (h), [32.41(l) x 15.82(w) x 22.55(h) cm] | |
| Temperature Range | 50°F to 104°F (10°C to 40°C), 20% to 95% relative humidity, non-condensing | |
| Weight | 7.05 lbs (3.19 kg) without batteries, battery weight 1.35 lbs (0.61 kg) | |
| Languages | English (U.S.) | |
Included |
||
| USB cable A to B, USB flash drive 512 MB with lanyard, tripod mini 7” telescoping, ISO probe 1 CFM, ISP clamp, tubing 3/8“ ID x 1/2” OD BevXX 10 feet, Zero count filter, 24 VDC 5.0 amp power adapter and power cord, *1 Li-Ion Smart battery included (2 battery slot capacity), Calibration certificate | USB cable A to B, USB flash drive 512 MB with lanyard, tripod mini 7” telescoping, ISO probe 1 CFM, ISP clamp, tubing 1/2“ ID x 5/8” OD BevXX 10 feet, Zero count filter, 24 VDC 5.0 amp power adapter and power cord, *1 Li-Ion Smart battery included (2 battery slot capacity), Calibration certificate | |
Optional |
||
| Temperature & humidity probe, Isokinetic sample probe with 6ft tubing, additional Li-Ion batteries, External battery charger w/AC & car adapter external thermal printer and cable, Printed Operating Manual, Carry case | ||
询价
When you are looking to take your environmental monitoring program to the next level, the ApexZ3 is your solution. The power of the ApexZ3 starts with the most complete system of self-diagnostics in the industry, an enclosure that is sealed, easy to wipe-down, and chemically compatible with all major cleaning solutions, and much more.
Lighthouse is famous for re-defining particle counting when we launched our first products. Now the ApexZ3 is doing it again with features such as a handle with integrated status lights*, an app for remote control and configuration, integrated WiFi, 11-hour battery life with hot-swappable smart batteries, and a true multi-touch enabled display.
The ApexZ3 is designed to be integrated into your environmental monitoring program. With the ability to wirelessly send data to your computer or server, the ApexZ3 can be used as a wireless real time sensor. Groups and custom sample plans can help to automate and simplify your monitoring routine. The ApexZ3 gives you various user and security levels, audit trails, and data tags that allow you to record things like batch and lot information, room status, or any other information you want associated with your particle counts. For large scale production facilities, we even offer custom integration and automation solutions.
Contact your local Lighthouse representative and see for yourself where the ApexZ3 can take you.
FEATURES:
- 0.3 - 10.0μ Particle Size Channels
- 1.0 CFM Flow Rate
- 21 CFR Part 11 Compliant
- Self-Diagnostics
- 7.0 inch Multi-Touch Display
- Sealed VHP Compatible Enclosure
- Integrated Status Lights*
- Hot Swappable Smart Batteries
- Wi-Fi, Ethernet and USB Data Transfer Options
- Built-In Cleanroom Certification Reports
- 2 Year Warranty
* Patent Pending
