Remote Viable Sampling Head
• Designed for ISO 14698 Compliance
• 1 CFM (28.3 LPM) sample rate
Home | ActiveCount100
|
ActiveCount100H |
ActiveCount25H |
ActiveCount100 |
Specifications |
|||
Flow Rate |
100 liters/minute ± 4% |
25 liters/minute ± 5% |
100 liters/minute ± 4% |
Autoclavable Impactor Head |
316L Stainless Steel with 300 holes, |
316L Stainless Steel with 88 holes, |
316L Stainless Steel with 300 holes, |
Autoclavable Dust Cover |
316L Stainless Steel |
316L Stainless Steel |
316L Stainless Steel |
Baseplate |
Removable, magnetic, autoclavable |
Non- Removable |
|
Exhaust |
HEPA filtered, captures 99.97% of particles at 0.3 μm |
Non-filtered |
|
Battery |
8 Hrs. continuous, 10 Hrs. normal sampling |
||
Weight |
6.75 lbs |
||
Petri dish compatibility |
Compatible with standard 90 mm petri dish (85mm-92mm), and Rapid Micro Bio Systems Cassette |
||
USB port |
USB 2.0 port (8 GB flash drive included) |
||
Data records |
Unlimited; saved on USB flash drive in .csv file format |
||
Log data fields |
Start date, time, location, user, sample duration, flow duration, volume, cycles, status |
||
Handle - monopod mountable |
Monopod mountable handle 3/8-16, includes 1/4-20 threaded adapter |
||
Enclosure |
316L Stainless Steel |
||
Power |
24 VDC power adapter (100-240V ~ 1.5A 50-60Hz) |
||
Calibration |
Annual |
||
Operating environment |
0-90% humidity non condensing, 0-40°C sampling, 0-35°C charging |
||
Dimensions |
7.6”(h) x 4.7“(w) x 4.7”(d) [ 19.4 (h) x 12.0 (w) x 12.0 (d) cm] |

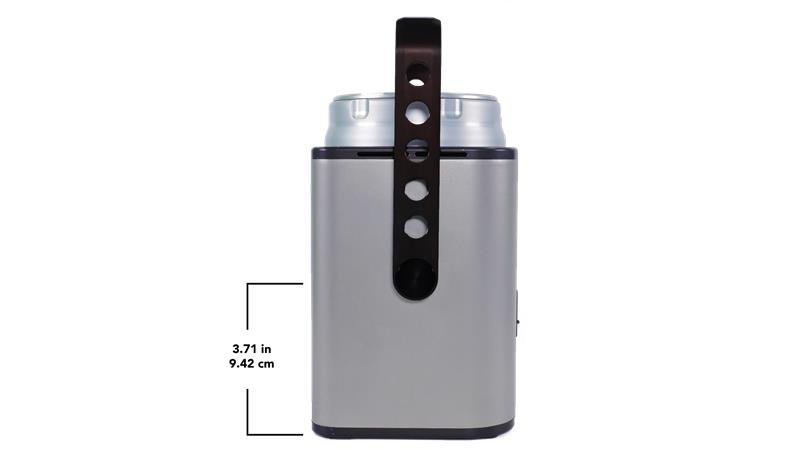

ActiveCount100 is a high-performance portable microbial sampler suitable for cleanrooms and aseptic environments. Continuous and periodic sampling enables complete control of sampling cycles and intervals.
The impactor head and dust cover are entirely autoclavable. You will find these components easily removed and installed on the chemically compatible and sanitizable stainless steel enclosure of the AC100. The optional gas sampler attachment can be used to monitor compressed gasses.
Features:
Title | Download |
---|---|
Datasheet -ActiveCount100 | Download |
• Designed for ISO 14698 Compliance
• 1 CFM (28.3 LPM) sample rate
• Sample rate: 25 liters per minute
• 3.5 inch (8.9 cm) color touch screen
